Linear Bearing with Block-SC
Home
Products
Linear Bearing/Linear Bushing
Linear Bearing with Block
SC Series

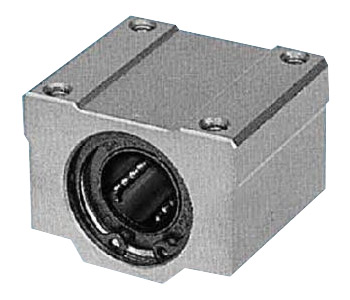

Linear Bearing with Block-SC
Product Specification
unit:(mm)
Standard Type
Long Type
Short Type
Model No.
Installed Linear Bearing
Load Ratings
Weight (g)
Model No.
Installed Linear Bearing
Load Ratings
Weight (g)
Model No.
Installed Linear Bearing
Load Ratings
Weight (g)
Dynamic C(N)
Static Co(N)
Dynamic C(N)
Static Co(N)
Dynamic C(N)
Static Co(N)
SC 8UU
LM 8UU
260
400
45
SC 8WUU
2×LM 8UU
410
800
102
SC 8VUU
LM 8UU
260
400
36
SC 10UU
LM 10UU
370
540
85
SC 10WUU
2xLMx10UU
590
1080
152
SC 10VUU
LM 10UU
370
540
63
SC 12UU
LM 12UU
410
590
86
SC 12WUU
2×LM 12UU
650
1180
177
SC 12VUU
LM 12UU
410
590
74
SC 13UU
LM 13UU
500
770
102
SC 13WUU
2xLM 13UU
800
1540
219
SC 13VUU
LM 13UU
500
770
85
SC 16UU
LM 16UU
770
1170
195
SC 16WUU
2×LM 16UU
1230
2340
388
SC 16VUU
LM 16UU
770
1170
132
SC 20UU
LM 20UU
860
1370
237
SC 20WUU
2×LM 20UU
1370
2740
468
SC 20VUU
LM 20UU
860
1370
170
SC 25UU
LM 25UU
980
1560
555
SC 25WUU
2×LM 25UU
1560
3120
1071
SC 25VUU
LM 25UU
980
1560
405
SC 30UU
LM 30UU
1560
2740
666
SC 30WUU
2×LM 30UU
2490
5480
1306
SC 30VUU
LM 30UU
1560
2740
495
SU 35UU
LM 35UU
1660
3130
1005
SC 35WUU
2xLM 35UU
2650
6260
2042
SC 35VUU
LM 35UU
1660
3130
790
SC 40UU
LM 40UU
2150
4010
1355
SC 40WUU
2×LM 40UU
3440
8020
3200
SC 40VUU
LM 40UU
2150
4010
1220
SC 50UU
LM 50UU
3820
7930
2610
SC 50WUU
2×LM 50UU
6700
15860
6720
SC 050VUU
LM 50UU
3820
7930
2300
1N ≒ 0.102kgf
unit:(mm)

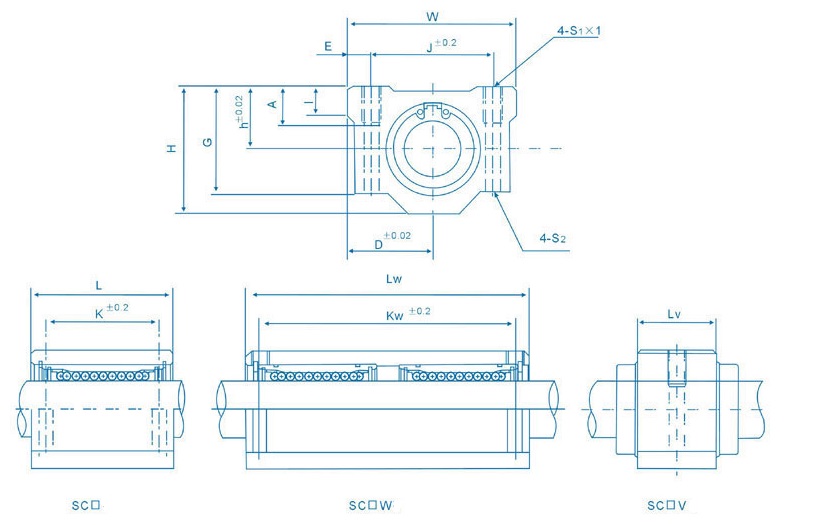

Dimensions (mm)
