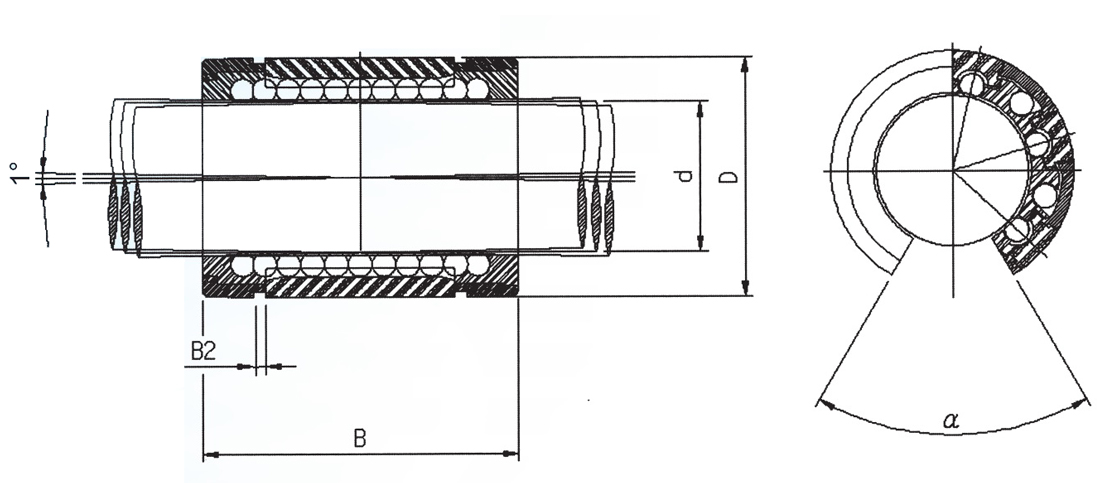

Linear Bearing-SB-OP Series

unit:(mm)
Axis
Diameter(Inner)
d		 Model No. Specification Angle
α		 No. of Ball Circuit Basic Loading
Rating
NO Seal One Side Seal Two Side Seal D B B1 B2 E Static
C(kgf)		 Dynamic
Co(kgf)
16 SBO 16 SBO 16U SBO 16 UU 26 36 26.5 1.35 11 68° 4 167 134
20 SBO 20 SBO 20U SBO 20 UU 32 45 30.5 1.65 11 55° 5 268 175
25 SBO 25 SBO 25U SBO 25 UU 40 58 41 1.9 12.5 57° 5 398 290
30 SBO 30 SBO 30U SBO 30 UU 47 68 44.5 1.9 14 57° 5 494 295
40 SBO 40 SBO 40U SBO 40 UU 62 80 60.5 2.2 20 56° 5 682 601
50 SBO 50 SBO 50U SBO 50 UU 75 100 74 2.7 24 60° 5 1192 825
