SP Series- Telescopic

As the intermedia spindle adopt the spline, sliding by seplaement is smooth.
By making use of space of F, it is possible to exchange at the fixed setting distance.
Attach SC type of universal joint to standard product.
Please contact us or instruct by your sketch in the following .
a.When a value of expansion becomes big.
b.When high accuracy is required for high speed revolution.
c.When universal joints except with SC type are used.
d.When plural splines are interchangeable each other.

  • The mark embossed on both spline spindle and sleeve should be met when assembly.→←
  • Generally speaking, sleeve side is assembled at the side of driving shaft.

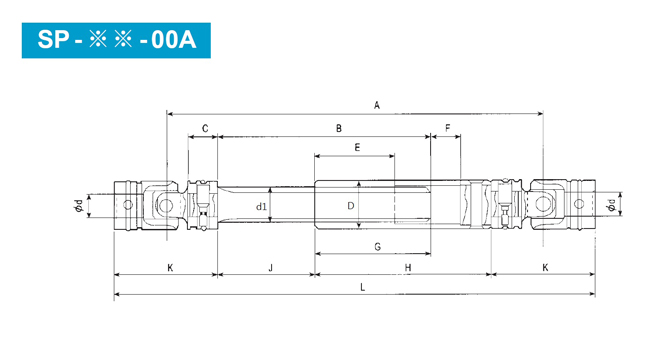

unit:(mm)
model /size d A B C D d1
spline
E F G H J K L flex X Y
SP-08-00A 8 127 65 10 17 involute
diameter
10m=0.75z=11
20 11 39 65 26 36 163  +19
-11
100 -
SP-10-00A 10 135 65 12 17 involute
diameter
10m=0.75z=11
20 13 37 65 28 42 177 +17
-13
100 -
SP-12-00A 12 173 88 15 23 16x13x3.5-6 40 16 56 89 32 52 225 +16
-16
195 285
SP-14-00A 14 181 87 17 23 16x13x3.5-6 40 18 54 89 33 59 240 +14
-18
195 285
SP-16-00A 16 234 115 22 30 20x16x4-6 40 23 75 120 40 74 308 +35
-23
110 230
SP-18-00A 18 246 115 23.5 30 20x16x4-6 40 26.5 70 120 45 81 327 +30
-26.5
110 230
SP-20-00A 20 257 118 25 36 22x18x5-6 40 27 73 125 45 87 344 +33
-27
115 260
SP-22-00A 22 266 115 27 40 25x21x5-6 40 30 68 125 47 94 360 +28
-30
105 270
SP-25-00A 25 300 133 30 44 28x23x6-6 45 32 83 145 50 105 405 +38
-32
235 410
SP-30-00A 30 342 145 35 51 32x26x6-6 50 40 85 160 60 122 464 +35
-40
170 375
SP-35-00A 35 375 150 40 59 38x32x8-6 50 45 85 170 65 140 515 +35
-45
160 395
SP-40-00A 40 417 165 45 67 42x36x8-6 60 50 95 190 70 157 574 +35
-50
140 410
SP-45-00A 45 461 180 50 75 45x41x8-8 70 55 105 210 75 176 637 +35
-55
120 420
SP-50-00A 50 505.6 199.2 55 83 52x46x9-8 80 60 115 230 84.2 191.4 697 +35
-60
95 430
