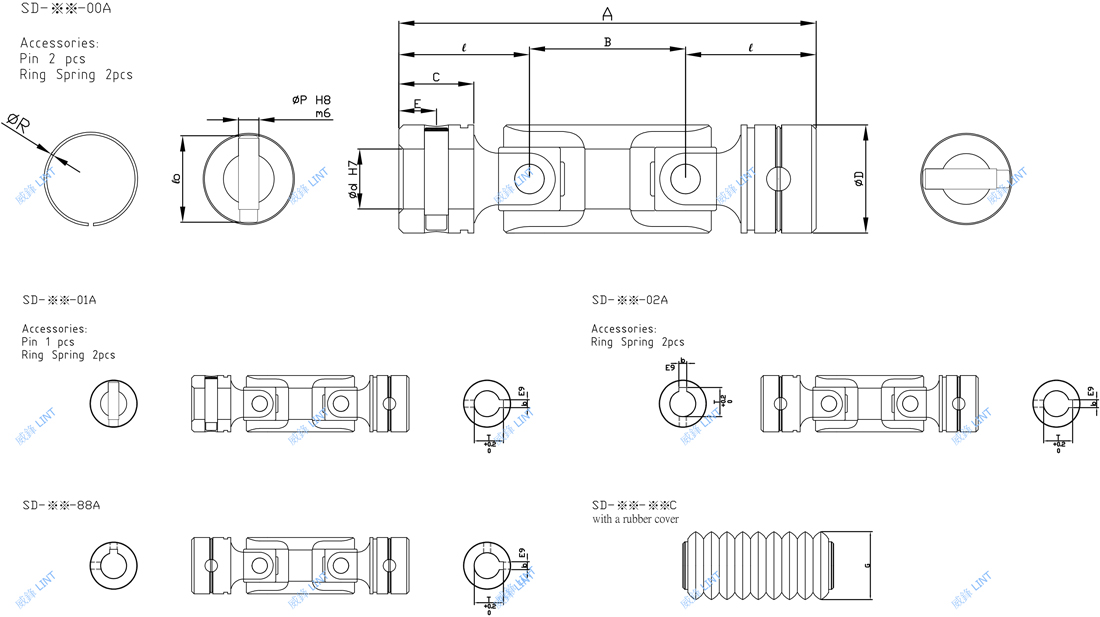

SD Series- Precision Double

unit:(mm)
model / size d D C E B A P ℓ0 b T M G 重量 (g)
SD-06-※※※ 6 12 9 4.5 15.5 18.5 49.5 3 10 - - - - 30
SD-08-※※※ 8 15 10 5 18 22 58 3.5 12.5 3 9.5 3 26 50
SD-10-※※※ 10 19 12 6 21 25.5 67.5 4.5 16.5 4 11.5 5 32 95
SD-12-※※※ 12 23 15 7.5 26 31 83 5 20.5 4 13.5 5 36 180
SD-14-※※※ 14 26 17 8.5 29.5 35.5 94.5 5.8 23 5 16 6 40 250
SD-16-※※※ 16 30 22 11 37 43.5 117.5 6.5 26.5 5 18 6 46 410
SD-18-※※※ 18 33 23.5 11.75 40.5 48 129 7 28.5 5 20 6 52 550
SD-20-※※※ 20 36 25 12.5 43.5 52 139 8 31.5 5 22 6 58 690
SD-22-※※※ 22 40 27 13.5 47 56 150 9 34.5 7 25 6 62 940
SD-25-※※※ 25 44 30 15 52.5 63 168 10 38.5 7 28 8 68 1240
SD-30-※※※ 30 51 35 17.5 61 73 195 11.5 44 7 33 8 82 1775
SD-35-※※※ 35 59 40 20 70 84 224 13 52 10 38.5 10 90 3180
