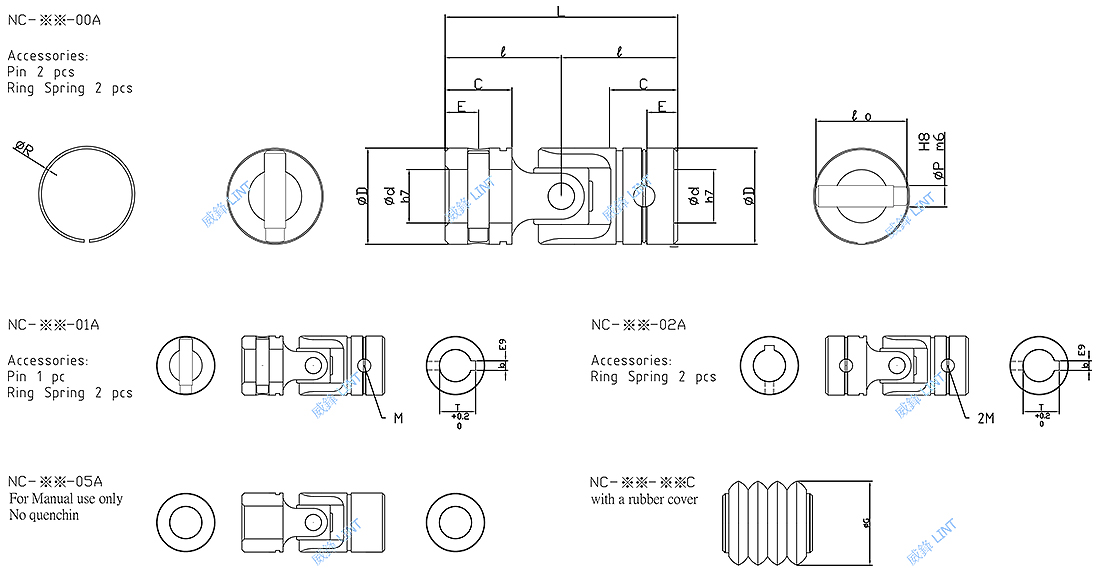

NC Series- Economic Single

unit:(mm)
model / size d D C E L P ℓ0 b T M G
NC-06-※※※ 6 12 9 4.5 15.5 31 3 10 - - - -
NC-08-※※※ 8 15 10 5 18 36 3.5 12.5 - - - 25
NC-10-※※※ 10 20 12 6 21 42 4.5 16.5 - - - 32
NC-12-※※※ 12 23 15 7.5 26 52 5 20.5 4 13.5 5 35
NC-14-※※※ 14 26 17 8.5 29.5 59 5.8 23 5 16 6 40
NC-16-※※※ 16 30 22 11 37 74 6.5 26.5 5 18 6 46
NC-18-※※※ 18 33 23.5 11.75 40.5 81 7 28.5 5 20 6 52
NC-20-※※※ 20 36 25 12.5 43.5 87 8 31.5 5 22 6 58
NC-25-※※※ 25 44 30 15 52.5 105 10 38.5 7 28 8 68
NC-30-※※※ 30 51 35 17.5 61 122 11.5 44 7 33 8 82
Remark : No indicating dimension is same as NC**00A
As NC type is not equipped with the oil reservoir, lubrication at the initial time of driving as well as regular lubrication is requirred.Using a rubber cover attachment filled with grease is preferable,too.It is advisable to put grease on joints from outside or to use lubricating oil of trubine=90 as lubricant
