SCTS SLITTED/SET SCREW TYPE/FLEXIBLE COUPLING

  • Material: Stainless steel
  • Features:
    1. One-body shape
    2. Zero backlash
    3. High rigid
    4. Suitable for encoder、low horsepower
    transmission bodies and high precision
    transmission mechanism
    5. High deflection
    6. Torque in SUS is better
    7. Fixed mode: Set screw type
  • Product No:
    SCTS-20-Ø5xØ5 = Type-Inside dia

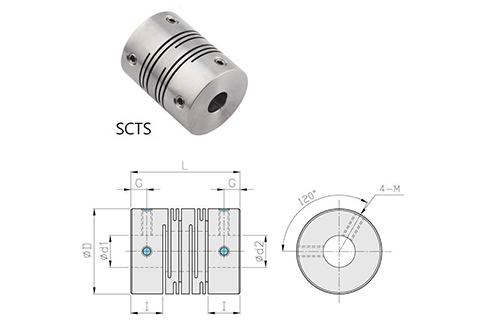

Dimension
Unit: mm
Catalog Number D L I G M d1*d2
(H7)		 Mass**
(g)
Min Max
SCTS-12 12 18.5 5 2.5 M2.5 3 6 14.0
SCTS-16 16 23.0 6.5 3.0 M3 4 8 30.0
SCTS-20 20 26.0 7.5 3.5 M4 5 10 50.0
SCTS-25 25 31.0 8.5 4.0 M4 6 12 100.0
SCTS-32 32 41.0 12 6.0 M5 6 14 220.0
SCTS-40 40 56.0 16 8.0 M5 8 20 480.0
SCTS-50 50 71.0 18 9.0 M6 12 25 700.0
SCTS-63 63 90.0 22 10.0 M8 15 35 1300.0

Specifications
Unit: mm
Catalog Number Rated Torque
(N.m)		 Max. Torpue
(N.m)		 Max. Rotational Frequency
(Rpm/min)		 Moment* of Inertia
(Kg.m²)		 Errors of Eccentricity
(mm)		 Errors of Angularity
(°)		 Errors of Shaft
End-Play
(mm)
SCTS-12 0.3 0.6 32000 2.1x10-7 0.10 2 ±0.3
SCTS-16 0.5 1.0 24000 8.4x10-7 0.10 2 ±0.3
SCTS-20 1.0 2.0 19000 2.4x10-6 0.10 2 ±0.3
SCTS-25 2.0 4.0 15000 6.8x10-6 0.15 2 ±0.4
SCTS-32 3.5 7.0 12000 2.6x10-5 0.15 2 ±0.5
SCTS-40 8.0 16.0 9600 8.7x10-5 0.2 2 ±0.5
SCTS-50 15.0 30.0 7700 2.7x10-4 0.2 2 ±0.5
SCTS-63 35.0 70.0 6100 8.4x10-4 0.2 2 ±0.5
